Derived type to manage a computational mesh of global atmospheric model. More...

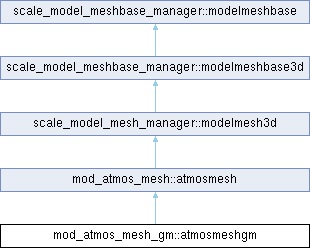

Inheritance diagram for mod_atmos_mesh_gm::atmosmeshgm:

Public Member Functions
procedure	init (this)
	Initialize an object to manage computational mesh.
procedure	final (this)
	Finalize an object to manage computational mesh.
procedure	create_communicator (this, sfield_num, hvfield_num, htensorfield_num, var_manager, field_list, commid)
	Create a communicator for data communication on global computational domain.
procedure	setup_restartfile1 (this, restart_file, var_num)
procedure	setup_restartfile2 (this, restart_file, in_basename, in_postfix_timelabel, out_basename, out_postfix_timelabel, out_dtype, out_title, var_num)
procedure	calc_uvmet (this, u, v, umet, vmet)
	Calculate horizontal vector components in longitude-latitude coordinates.
procedure	setup_vcoordinate (this)
	Setup the vertical coordinate.
Public Member Functions inherited from mod_atmos_mesh::atmosmesh
procedure	atmosmesh_init (this, mesh)
	Setup an object to manage a computational mesh.
procedure	atmosmesh_final (this)
	Finalize an object to manage a computational mesh.
procedure(atmosmesh_setup_restartfile1), deferred, public	setup_restartfile1 atmosmesh_setup_restartfile1
procedure(atmosmesh_setup_restartfile2), deferred, public	setup_restartfile2 atmosmesh_setup_restartfile2
procedure(atmosmesh_calc_uvmet), deferred, public	calc_uvmet atmosmesh_calc_uvmet
generic	setup_restartfile setup_restartfile1
generic	setup_restartfile setup_restartfile2
procedure(atmosmesh_setup_vcoord), deferred, public	setup_vcoordinate atmosmesh_setup_vcoord
Public Member Functions inherited from scale_model_mesh_manager::modelmesh3d
procedure, public	modelmesh3d_init (this, mesh)
procedure, public	modelmesh3d_final (this)
procedure(modelmesh3d_create_communicator), deferred, public	create_communicator modelmesh3d_create_communicator
Public Member Functions inherited from scale_model_meshbase_manager::modelmeshbase3d
procedure, public	modelmeshbase3d_init (this, mesh)
procedure, public	modelmeshbase3d_final (this)
procedure, public	prepairelementoperation (this, element_operation_type, spmv_storage_format_)
procedure, public	getmodelmesh (this, ptr_mesh)
Public Member Functions inherited from scale_model_meshbase_manager::modelmeshbase
procedure	modelmeshbase_init (this, ndim)
procedure	modelmeshbase_final (this)
procedure	get_communicatorid (this, max_communicator_num)
procedure(modelmeshbase_get_modelmesh), deferred, public	getmodelmesh (this, ptr_mesh)

Public Attributes
type(meshcubedspheredom3d)	mesh
	Object for 3D cubed-sphere mesh.
type(meshfieldcommcubedspheredom3d), dimension(atm_mesh_max_commnuicator_num)	comm_list
Public Attributes inherited from mod_atmos_mesh::atmosmesh
type(hexahedralelement)	element
	Object to manage 3D reference element.
type(lineelement)	element_v1d
	Object to manage 1D reference element for the vertical direction.
type(meshtopography)	topography
	Object to manage topography.
integer	vcoord_type_id
	ID of vertical coordinate type.
logical	comm_use_mpi_pc
	Flag whether persistent communication in MPI is used.
logical	comm_use_mpi_pc_fujitsu_ext
	Flag whether Fujitsu extension in MPI persistent communication is used.
Public Attributes inherited from scale_model_meshbase_manager::modelmeshbase3d
class(meshbase3d), pointer	ptr_mesh
type(elementoperationgeneral)	element_operation_general
class(elementoperationtensorprod3d), allocatable	element_operation_tensorprod
logical	initialized_element_operation
Public Attributes inherited from scale_model_meshbase_manager::modelmeshbase
type(sparsemat), dimension(:), allocatable	doptrmat
type(sparsemat), dimension(:), allocatable	soptrmat
type(sparsemat)	liftoptrmat
class(elementoperationbase3d), pointer	element3d_operation
integer	communicator_num

Detailed Description

Derived type to manage a computational mesh of global atmospheric model.

Definition at line 48 of file mod_atmos_mesh_gm.F90.

Member Function/Subroutine Documentation

◆ init()

procedure mod_atmos_mesh_gm::atmosmeshgm::init ( class(atmosmeshgm), intent(inout), target this )

Initialize an object to manage computational mesh.

Definition at line 52 of file mod_atmos_mesh_gm.F90.

◆ final()

procedure mod_atmos_mesh_gm::atmosmeshgm::final ( class(atmosmeshgm), intent(inout) this )

Finalize an object to manage computational mesh.

Definition at line 53 of file mod_atmos_mesh_gm.F90.

◆ create_communicator()

procedure mod_atmos_mesh_gm::atmosmeshgm::create_communicator	(	class(atmosmeshgm), intent(inout), target	this,
		integer, intent(in)	sfield_num,
		integer, intent(in)	hvfield_num,
		integer, intent(in)	htensorfield_num,
		class(modelvarmanager), intent(inout)	var_manager,
		class(meshfield3d), dimension(:), intent(in)	field_list,
		integer, intent(out)	commid )

Create a communicator for data communication on global computational domain.

Parameters

[in]	sfield_num	Number of scalar fields
[in]	hvfield_num	Number of horizontal vector fields
[in]	htensorfield_num	Number of horizontal tensor fields
[in,out]	var_manager	Object to manage variables
[in]	field_list	Array of 3D fields
[out]	commid	Communicator ID

Definition at line 54 of file mod_atmos_mesh_gm.F90.

◆ setup_restartfile1()

procedure mod_atmos_mesh_gm::atmosmeshgm::setup_restartfile1	(	class(atmosmeshgm), intent(inout), target	this,
		class(file_restart_meshfield_component), intent(inout)	restart_file,
		integer, intent(in)	var_num )

Definition at line 55 of file mod_atmos_mesh_gm.F90.

◆ setup_restartfile2()

procedure mod_atmos_mesh_gm::atmosmeshgm::setup_restartfile2	(	class(atmosmeshgm), intent(inout), target	this,
		class(file_restart_meshfield_component), intent(inout)	restart_file,
		character(*), intent(in)	in_basename,
		logical, intent(in)	in_postfix_timelabel,
		character(*), intent(in)	out_basename,
		logical, intent(in)	out_postfix_timelabel,
		character(*), intent(in)	out_dtype,
		character(*), intent(in)	out_title,
		integer, intent(in)	var_num )

Definition at line 56 of file mod_atmos_mesh_gm.F90.

◆ calc_uvmet()

procedure mod_atmos_mesh_gm::atmosmeshgm::calc_uvmet	(	class(atmosmeshgm), intent(in), target	this,
		type(meshfield3d), intent(in)	u,
		type(meshfield3d), intent(in)	v,
		type(meshfield3d), intent(inout)	umet,
		type(meshfield3d), intent(inout)	vmet )

Calculate horizontal vector components in longitude-latitude coordinates.

Definition at line 57 of file mod_atmos_mesh_gm.F90.

◆ setup_vcoordinate()

procedure mod_atmos_mesh_gm::atmosmeshgm::setup_vcoordinate ( class(atmosmeshgm), intent(inout), target this )

Setup the vertical coordinate.

Definition at line 58 of file mod_atmos_mesh_gm.F90.

Member Data Documentation

◆ mesh

type(meshcubedspheredom3d) mod_atmos_mesh_gm::atmosmeshgm::mesh

Object for 3D cubed-sphere mesh.

Definition at line 49 of file mod_atmos_mesh_gm.F90.

49 type(MeshCubedSphereDom3D) :: mesh !< Object for 3D cubed-sphere mesh

◆ comm_list

type(meshfieldcommcubedspheredom3d), dimension(atm_mesh_max_commnuicator_num) mod_atmos_mesh_gm::atmosmeshgm::comm_list

Definition at line 50 of file mod_atmos_mesh_gm.F90.

50 type(MeshFieldCommCubedSphereDom3D) :: comm_list(ATM_MESH_MAX_COMMNUICATOR_NUM)

The documentation for this type was generated from the following file:

mod_atmos_mesh_gm.F90
